Vooner VaneGard® Liquid Ring Vacuum Pumps
"Protecting Vacuum When Production CountsTM"

In order to stay competitive in today's world, it is essential for industries to increase production while reducing production related costs. The Vooner® VaneGard® liquid ring vacuum pump, with its pioneer design, accomplishes just this. VaneGard design features give you vacuum pumps engineered for maximum value, consistent performance and added pump life. The exclusive VaneGard® self-aligning, removable bearing carrier speeds maintenance and reduces downtime. At the same time, stainless steel components extend the pump's overall useful life, thus reducing full life cycle cost.

bullet

1. Vooner Brand
175 - 11,000 ACFM
5 - 26" HG Vacuum
Quick delivery
3-year warranty

bullet

2. Dekker Brand
5-1000 AFCM
5-29" HG Vacuum
Water/Oil Seal Type
1Year Warranty


The bolt-in design fits right into your present system so Vooner liquid ring vacuum pumps get you back into production faster - through faster delivery, installation, and start-up. Vooner also provides extensive technical support and Analysis Services as well as sales support and distribution throughout North America. Plus, our worldwide sales and service representatives make Vooner the international choice in liquid ring vacuum pumps.



Pump Model Number Specification

horizontal rule

VG 20C-M













 VG = Vooner VaneGard Model Pumps

20 = Actual Cubic Feet per Minute in hundreds (example indicates 2000 ACFM)

C = Pump Component Metallurgy
(See Metallurgy Chart below)

M = Vacuum Level Ranges

(L= Low, 4-16"HgV; M=Medium, 12-24"HgV; H=High, 24-26"HgV)


Bolt In Replacement

horizontal rule

The VaneGard is engineered to fit standard industry dimensions and installs readily into existing systems. Piping for secondary water supply is optional.

 VaneGard
Model #

 Replaces Model #

 VG3 LR3 LP3 CL300
 VG4 LR4 LP4 CL400
 VG7 LR7 LP7 CL700
 VG10 LR10 LP10 CL1000
 VG20 LR20 LP20 CL2000
 VG30 LR30 LP30 CL3000
 VG40 LR40 LP40 CL4000
 V460 LR60 LP60 CL6000
 V490 CL9000

Pump Component Metallurgy
For VG3-VG40 Models

 Rotor

Cone

Heads

Bearing Carrier

Housing

 Shaft

Packing Gland

 A

CI

  CI  CI  CS  CI  CS  316SS
 C  304SS  304SS  CI  CS  CI  410HT  316SS
 S  304SS  304SS  CI  CS  304SS  410HT  316SS
 XVC  304SS  304SS  316SS*  CS  CI  410HT  316SS
 XVS  304SS  304SS  316SS*  CS  304SS  410HT  316SS
 PVS

316SS

 316SS  316SS*  CS  316SS  316SS  316SS
 SS4

 304SS

  304SS  304SS  CS  304SS  316SS  316SS
 SS6

316SS

  316SS  316SS  CS  316SS  316SS  316SS

SS = Stainless Steel | CS = Carbon Steel | CI = Cast Iron | HT = Heat Treated

* Replaceable Wear Plates on Cast Iron Heads

horizontal rule

Pumps come equipped with solid cast 304 stainless steel (CF-8) Rotor
as standard construction. The 304 stainless steel prevents erosive and corrosive wear at the critical seal area. This maintains the original close tolerance between the Rotor and Cones.

horizontal rule



Design Features

Cast Stainless Steel Rotor: All Vooner VaneGard pumps come equipped with solid cast 304 stainless steel (CF-8) Rotors as standard construction. Stainless steel cones are a popular option. The 304 stainless steel prevents erosive and corrosive wear at the critical seal area. This maintains the original close tolerance between the Rotor and Cones much longer than cast iron parts can.


horizontal rule

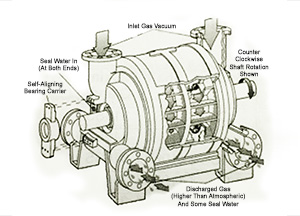

Vooner Two-Inlet Pump Design:
All Vooner pumps are the world standard two inlet pumps. With this design, the average axial thrust loads on the bearings is zero. This is much less than a single-inlet, single-cone design which always has a thrust load in one direction. Vooner’s two-inlet designs allow slower air velocity, less impact force inside the pump, and slower operating speed than single-inlet designs.

horizontal rule
Self-Aligning Removable Bearing Carrier: The unique self-aligning Bearing Carrier featured in the VaneGard allows bearing replacement without removing the pump from the process piping and the Heads from the pump housing. By simply turning the Carrier jackbolts against the head, the Bearing Carrier (with the bearing) slides off the shaft.


horizontal rule
Stainless Steel Shaft: All Vooner VaneGard pumps except for the "A" model come with stainless steel shafts that are more corrosion- and abrasion-resistant than common carbon steel shafts.



FEATURES AND BENEFITS

FEATURE:
bullet Cast Stainless Steel Rotor which develops a polished surface with use
BENEFIT:
bullet Increases useful pump life by maintaining Airflow Capacity longer than cast iron pumps
FEATURE:
bullet Combination of: Stainless Steel Components and Dual Water Supply System
BENEFIT:
bullet Reduces Costly Vaneslip; lost ACFM along with wasted Horsepower and Water
FEATURE:
bullet Self-Aligning Removable Bearing Carrier
BENEFIT:
bullet Reduces Downtime required for Bearing replacement - Pump removal from piping and disassembly are no longer necessary Option to use Packing or Mechanical Seals
FEATURE:
bullet 410 Heat Treated Stainless Steel Shaft; Packing lubricated with fresh water (On "C" model and higher pumps)
BENEFIT:
bullet Increased Shaft durability and life
